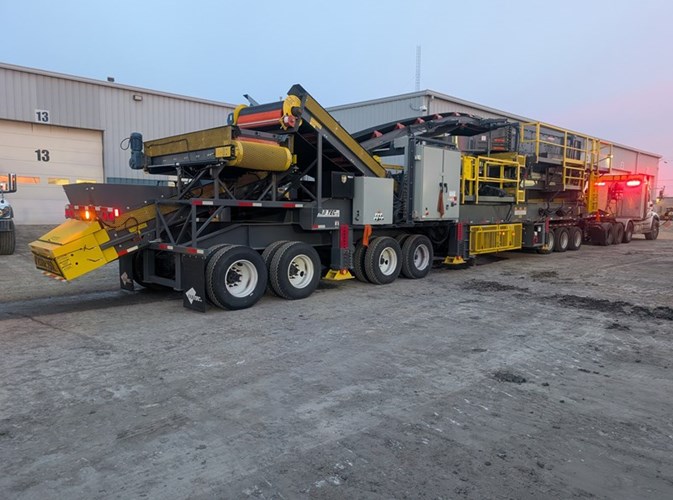

2025 FABTEC Crusher - Cone 1313
Fields with asterisks * are required.
Print This Page
Description
CONE PLANT SUPE/FABT
Inventory ID
E00072284
Serial
PCS-4-543-25
Machine Status
Equipment is on rent
Contact your Salesperson for more information
Contact your Salesperson for more information
Details
- Inventory ID: E00072284
- Status: On Rent
- Make: FABTEC
- Model: 1313
- Year: 2025
- Serial#: PCS-4-543-25
Notes
- FABTEC - SUPERIOR P300 - 6203 1313 TYPE PORTABLE CLOSE CIRCUIT PLANT EQUIPPED AS PER BELOW:
- SUPERIOR 6- X 20- - 3 DECK SCREEN 40 HP 1200 TEFC:
- SUPERIOR P300 CONE:
- PROVISIONS FOR MOUNTING LUBE PACKAGES
- PLUMBING OF CONE BY FAB TEC IS OFFERED AS AN OPTION - 300 HP 1200 RPM TEFC TOSHIBA MOTOR:
- OPTIONAL DEDUCT FOR CUSTOMER SUPPLIED MOTOR - 8V BELT DRIVE WITH ENCLOSED GUARD WITH INSPECTION DOORS:
- 8 GROOVE SHEAVE 8 BELTS - 4 AXLE CARRIER:
- 24" WF 76# BEAMS
- HUTCH 9700SERIES SUSPENSION: 10- WIDE TANDEM-TANDEM STYLE
- 22 500# STANDARD FORGE AXLES 11:00R X 22.5 TIRES
- SIX GROUND SUPPORT STANDS WITH JACKING PADS
- AIR BRAKES LED BRAKE LIGHTS LED MARKER LIGHTS LED STROBE LIGHT REFLECTIVE
TAPE AND MUD FLAPS
- FRONT FOLD-DOWN LEGS - HEAVY DUTY CONE MOUNT WITH AR LINED DISCHARGE HOPPER WITH ADJUSTABLE SKIRT BOARD WIPERS & MAINTENANCE DOOR FOR INSPECTION AND CLEAN-OUT
- CONE FEED RING WITH EXPANDED METAL WINDOWS:
- DESIGNED WITH HOLD-DOWN BRACKETS FOR CONE ADJUSTMENT - 42" UNDER CONE CONVEYOR; 15 HP TEFC:
- 3 PLY BELT. 1/4" COVER
- 12" C/C ON IDLERS UNDER CONE THEN 36" C/C ON CEMA C SEALED IDLERS
- DODGE SCM BEARINGS 5207 FALK SHAFT MOUNT REDUCER
- OPTIONAL VULCANIZEDSPLICE AND BELT SCRAPER
- VULCANIZED LAGGED HEAD PULLEY SELF-CLEANING WING TAIL PULLEY - CLOSE CIRCUIT CHUTE BETWEEN CONE & FEED CONVEYOR WITH AR LINER:
- OPTION FOR TRANSFER CONVEYOR - PRODUCT DISCHARGE CHUTES WITH AR LINERS DISCHARGING TOEITHER SIDE:
- OPTION FOR PRODUCT CROSS CONVEYOR(S)
- MOUNTED ON SLIDERS - 42" OVERHEAD FEED CONVEYOR WITH 25 HP HEAVY DUTY S-DRIVE:
- HEAVY DUTY S-DRIVE WITH 16" LAGGED DRIVE PULLEY AND WINGED BEND PULLEY MOUNTED
WITH 2 15/16" DODGE TYPE E PILLOW BLOCK BEARINGS
- SELF-CLEANING 14" WING TAIL PULLEY WITH DODGE SCM BEARINGS
- 14" HEAD PULLEY WITH DODGE SCM BEARINGS
- 3 PLY BELT IMPACT IDLERS IN FEED AREA THEN 36" SPACING ON CEMA C IDLERS
- FORMED SKIRT BOARD 1ST15-
- STANDARD RETURN ROLLERS
- OPTION OF SLIDE-OVER SECTION FOR CONE MAINTENANCE
- OPTION FOR HYDRAULIC RAISE AND LOWER
- OPTIONAL CERAMIC LAGGED DRIVE PULLEY - SCREEN FEEDING 1ST AND 2ND DECK INTO CONE WITH OPTION OF 2ND DECK DISCHARGING INTO PRODUCT CHUTE OR OPTIONAL CROSS CONVEYOR
- 1/4" PL UNDER SCREEN COLLECTION HOPPER WITH ADJUSTABLE SKIRT BOARD WIPERS
- 60" X 24- UNDER SCREEN CONVEYOR; 15 HP TEFC:
- 2 PLY BELT 36" SPACING ON CEMA C PRECISION IDLERS
- VULCANIZED LAGGED HEAD PULLEY SELF-CLEANING WING TAIL PULLEY
- DODGE SCM BEARINGS - 20" FOLD DOWN WALKWAYS BOTH SIDES OF SCREEN & 48" BACK PLATFORM WITH DIAMOND PLATE FLOOR 42" TUBE STEEL HANDRAILS & ACCESS LADDER
- WALKWAYS BOTH SIDE OF CONE WITH LADDER
- SELF CLOSING SAFETY GATES AT ALL LADDER OPENINGS
- SAFETY GUARDS SAND BLASTED CHASSIS RUST INHIBITOR PRIMER AND TWO FINISH COATS OF PAINT INCLUDED
- OPTIONS INCLUDED:
- BASE FRAME FOR 6- X 20- SCREEN:
- SCREEN MOTOR MOUNT BASE FRAME PERCHES SNUBBERS ETC TO BE PROVIDED BY
SCREEN MANUFACTURER - 36" X 10- REAR TRANSFER CONVEYOR ~VS~ TRANSFER CHUTE:
- 5 HP TEFC 3 PLY BELT
- DODGE SCM BEARINGS ON TELO TAKE-UPS
- 18" SPACING ON CHANNEL INSET IDLERS
- FULL LENGTH FORMED SKIRT BOARD WITH ADJUSTABLE WIPERS - SEW KA77 5 HP RIGHT ANGLE DRIVE ~VS~ CONVENTIONAL DRIVE ON 36" TRANSFER CONVEYOR:
- INCLUDES TYPE œE" BEARINGS ON HEAD PULLEY - HYDRAULIC SLIDE OF REAR TRANSFER CONVEYOR ~VS~ MANUAL SLIDE
- VULCANIZE SPLICE 36" TRANSFER CONVEYOR BELT ~VS~ STANDARD CLIPS
- FAB TEC 70K RUN-ON SYSTEM KIT:
- 18" STROKE CYLINDERS 70 000 LB. CAPACITY (AT 2500 PSI) WITH SAFETY-LOK CIRCUIT
- DELTA HPX-200 12-VOLT POWER UNIT
- (1) SPOOL VALVE~ NUMBER OF BANKS TO MATCH LEG QUANTITY
- CYLINDER MOUNTING PLATES & HARDWARE
- HEAVY DUTY FOOT PADS - (2) - FAB TEC 48K RUN-ON LEG KIT WITH SWIVEL MOUNTS ON FRONT OF CHASSIS:
- 5 X 24" CYLINDERS 48 000 LB CAPACITY (AT 2500 PSI) WITH SAFETY-LOK CIRCUIT
-24" STROKE
- SWIVEL MOUNTING PLATE
- CYLINDER MOUNTING HARDWARE
- HEAVY DUTY FOOT PADS
- HYDRAULIC CYLINDER FOR SWIVEL UP AND DOWN OF LEG
- WORKS WITH 70K RUN ON LEG KIT - SELF CONTAINED HONDA 8 HP HYD. POWER PACKAGE ~VS~ HPX 200 12V:
-ELECTRIC START
- 12 GALLON HYDRAULIC RESERVOIR WITH FILTER PROTECTION
- 2 1/2 GPM PUMP - REVERSIBLE 18" X 12- FAB TEC SPECIAL DESIGNED PRODUCT CROSS CONVEYOR WITH SEW RIGHT ANGLE DRIVES:
- FULL LENGTH FORMED SKIRT BOARD
- VULCANIZED LAGGED HEAD PULLEY AND SELF-CLEANING WING TAIL PULLEY
- CHANNEL INSET IDLERS AND 2 PLY 3/16 COVER BELT
- OPTIONAL VULCANIZED SPLICE STYLE CONVEYORS - VULCANIZE SPLICED 18" CROSS CONVEYORS:
- REQUIRES SPECIAL CONVEYOR DESIGN
- œRUBBER BAND"STYLE BELT PRE-VULCANIZED - HYDRAULIC FEED CONVEYOR LIFT & LOWER:
- WHEN ACCOMPANIED BY 12V SYSTEM FOR FAB TEC HYDRAULICS - HYDRAULIC SCREEN LIFT & LOWER FEATURE FOR TRANSPORTATION AVAILABLEWITH FEED CONVEYOR LIFT ONLY IF 2 1/2›¼° SCREEN ISUSED
- HYDRAULIC FEED CONVEYOR SLIDE OVER SECTION FOR EASE IN CONE MAINTENANCE
- HINGE LOWER SECTION OF UNDER CONE CONVEYOR FOR MAINTENANCE
- FOR HYDRAULIC RAISE AND LOWER OF UNDER CONE CONVEYOR:
- ACCOMPANIED BY LEG LEVELING HYDRAULICS
- REQUIRES TAKING OPTION OF HINGE UNDER CONE CONVEYOR - FRONT TOW HOOKS ON CARRIER
- TOOL BOXES MOUNTED ON CHASSIS
- RUBBER DISC RETURN ROLLERS ON ALL CONVEYORS ~VS~ STEEL CANS
- ORANGE FLASHING ON ALL CONVEYORS ~VS~ STANDARD BLACK
- PLUMBING OF CONETO LUBE PKG & HYDRAULIC ADJUST:
- PROVISION FOR SLIDE-IN REJECT CONVEYOR:
- SIMPLY FLAT BAR STYLE
- CONVEYOR NOT INCLUDED - TIE OFF CABLES INSTALLED ON UPPER SECTION OF FEED CONVEYOR ON BOTH SIDES OF FEED CONVEYOR
- EXTEND SKIRT BOARD FULL LENGTH OF UNDER CONE CONVEYOR:
- SKIRTBOARD WIPE FIRST 15- - ACCESS PANEL AT THE REAR OF THE UNDER-SCREEN HOPPER FOR CLEANOUT
- CONE DRIVE MOTOR MOUNT TIED INTO CRUSHER MOUNT AND FRAME TO ELIMINATE FLEXING
- CERAMIC LAGGED DRIVE PULLEY ~VS~ STANDARD VULCANIZED RUBBER LAGGED DRIVE ON FEED CONVEYOR
- SEW KA87 15 HP RIGHT ANGLE DRIVE ~VS~ CONVENTIONAL DRIVE ON 60" UNDER SCREEN CONVEYOR
- INCLUDES TYPE œE" BEARINGS ON HEAD PULLEY - SEW KA87 15 HP RIGHT ANGLE DRIVE ~VS~ CONVENTIONAL DRIVE ON 42" UNDER CONE CONVEYOR
- SEW KA97 25 HP RIGHT ANGLE DRIVE ON S-DRIVE OF FEED CONVEYOR ~VS~ 25 HP CONVENTIONAL DRIVE:
- INCLUDES TYPE œE" BEARINGS ON HEAD PULLEY.
- BELT SPEED APPROX. 314 FT/MIN - BACK STOP INSTALLEDON UNDER CONE CONVEYOR
- VULCANIZE SPLICE 42" FEED CONVEYOR BELT ~VS~ STANDARD CLIPS
- 42" SUPERIOR CLICK X-TERRA BELT SCRAPERS
- NEW CLICK STYLE ADJUSTERS - TO GO WITH 675 3/8" COVER ON FEED CONVEYOR ~VS~ STANDARD 3 PLY BELTING
- VULCANIZE SPLICE 60" UNDER SCREEN BELT ~VS~ STANDARD CLIPS
- 60" SUPERIOR CLICK X-TERRA BELT SCRAPER:
- NEW CLICK STYLE ADJUSTERS - NEW FAB TEC HEAVY DUTY STYLE IMPACT AREA ~VS~ IMPACT IDLERS OF FEED CONVEYOR:
- IMPACT BARS ON THE SIDE ANDIMPACT ROLLERS IN THE CENTER
- INCLUDES ADDITIONAL IMPACT IDLER AT TRANSFER CONVEYOR FEEDS ONTO FEED CONVEYOR - WALKWAYS RAISED 18" ON EACH SIDE OF SCREEN:
- BACK PLATFORM WILL REMAIN AT NORMAL LOWER POSITION
- TOE BOARD ON BOTH SIDES OFWALKWAYS
- REQUIRES ADDITIONAL SUPPORTS & BRACKETS
- INCLUDES STEPS BETWEEN WALKWAYS AND REAR PLATFORM
- EXTRA LOWER PLATFORMS AT SCREEN GEAR BOX FOR SCREEN MAINTENANCE
- ADDITIONAL BELT GUARDING FOR FEED CONVEYOR
- WALKWAYS FOLD FOR SHIPPING - FOLDING STYLE LADDER ~VS~ STANDARD REMOVEABLE LADDER:
- FOLDS FOR TRANSPORT
- TRACTION TREAD LADDER RUNGS
- INCLUDES ADDITIONAL OPENING ON OPPOSITE SIDES OF SUBFRAME HOPPER
- SCREEN SUBFRAME ONLY NORMAL STYLE LADDERS ON EACH SIDE OF CONE - MAGNET STAND MOUNTED TO FEED CONVEYOR:
- MAGNET STAND ONLY DOES NOT INCLUDE MAGNET
- MODEL OF MAGNET TBD - SWITCH GEAR MOUNTING PROVISIONS ON SIDE OF CHASSIS:
- OPPOSITE SIDE AS CONE LUBE PACKAGE. (PASSENGER SIDE) - ALL COG DRIVE COMPONENTS SUPPLIED BY SUPERIOR:
- CONE SHEAVE CONE BUSHING DRIVE BELT MOTOR SHEAVE AND MOTOR BUSHING MUST ALL BE PROVIDED
- EXTRA GUARDING FOR BETTER DUST CONTROL WHISKER BISCUIT SEALS - WEG 300 HP @ 1200 RPM MOTOR
1/3 - 2/3 BLENDING FOR 3RD DECK TO UNDER SCREEN CONVEYOR ADDER:
